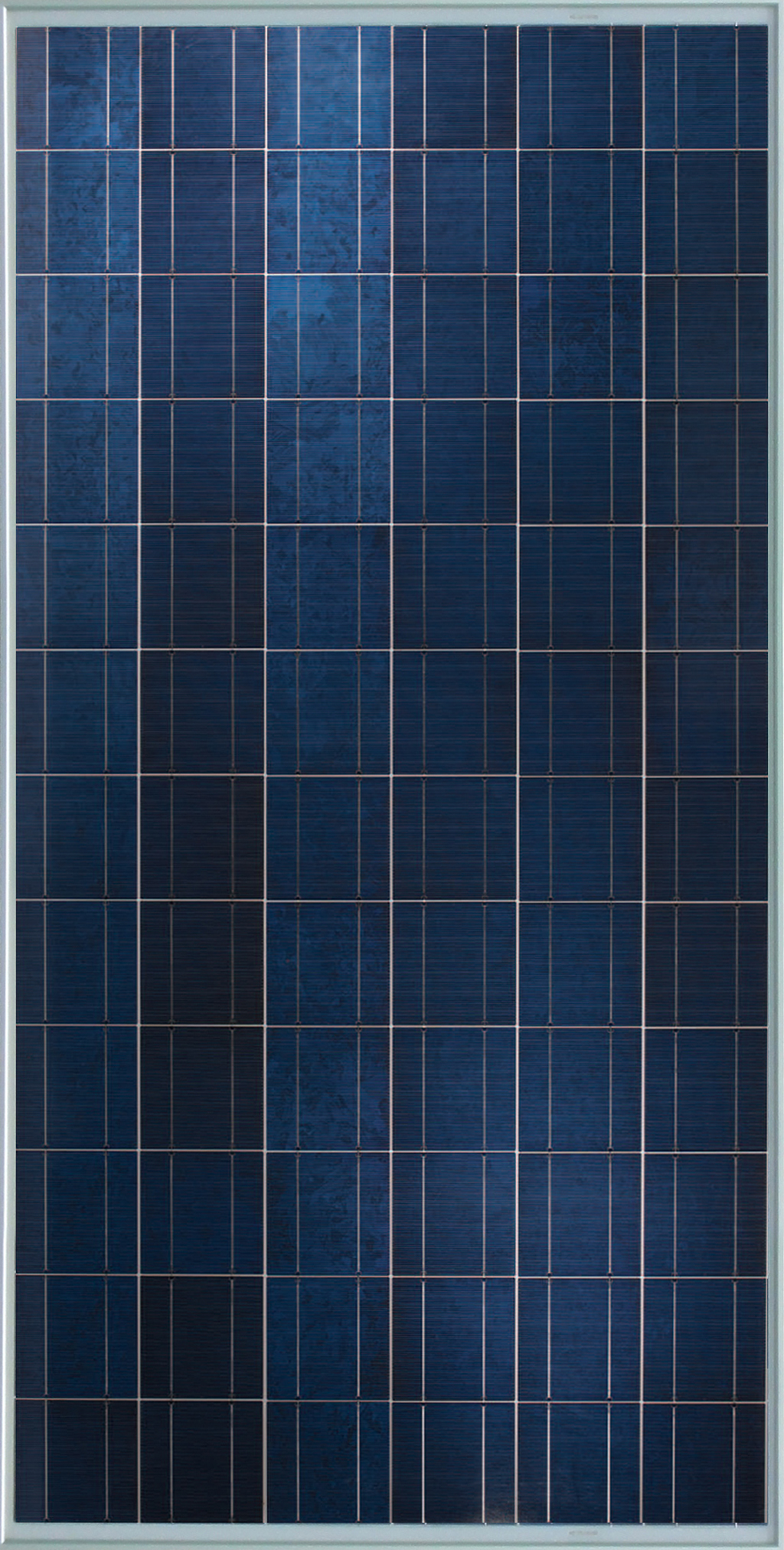

Solar module: Poly
Maximum power (Wp): 250
Maximum power voltage (V): 31.5V
Maximum power current (A): 7.94A
Open circuit voltage (V): 37.4V
Short circuit current (A): 8.48A
Number of cells (Pcs): 60
Size of module (mm): 1640×992×50
Maximum system voltage (V): 1000VDC
Temperature coefficients of Isc (%): +0.071/℃
Temperature coefficients of Voc (%): -0.363/℃
Temperature coefficients of Pm (%): -0.369/℃
Temperature Range: -40℃～+85℃
Tolerance Wattage (e.g. +/-3%): 0~3%
Allowable Hail Load: Maximum diameter of 25mm with impact speed 23m/s
Weight per piece (kg): 19.6
Connectors and Cables Type: 2 Pfg 1169 1×4mm2
Length of Cables (mm): 900mm
Cell Efficiency (%): 17.2%
Module Efficiency (%): 15.4%
Frame (Material, Corners, etc.): Aluminum 6063T5
Standard Test Conditions: AM1.5 1000W/m2 25’C
Warranty: 25 years life and 25 years 80% of power
FF (%): ≥78%
Packing: 2pcs/carton
