Hummer generator:Hummer generator, the most advanced in the world, wins 4 proprietary intellectual property rights. It is made of high-efficiency magnetic materials, special copper alloy, high-strength stainless steel and aeronautic aluminum alloys. With special materials, it features with higher efficiency and lighter weight than traditional generators.
SKF Bearings:Two SKF bearings, famous in the world with good quality and a long history, make sure the whole system in reliable, safe and steady operation status.
Blades:Made of nylon, they receive wind energy and convert it into mechanical energy. Every 3 blades compose one set and pass balance test before delivery, so please don’t disorderly use.

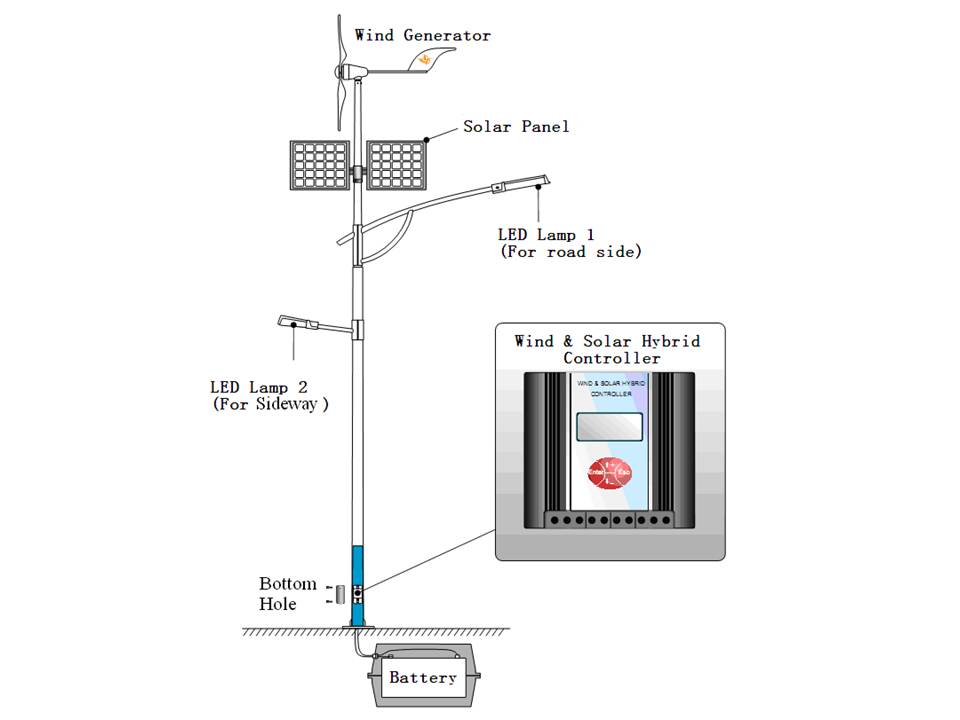

Wind-solar hybrid Controller:It integrates the functions of time control and light control. Users can set the time need for "on/off" according to actual demands and view the real-time operation status of the whole system from LCD display.

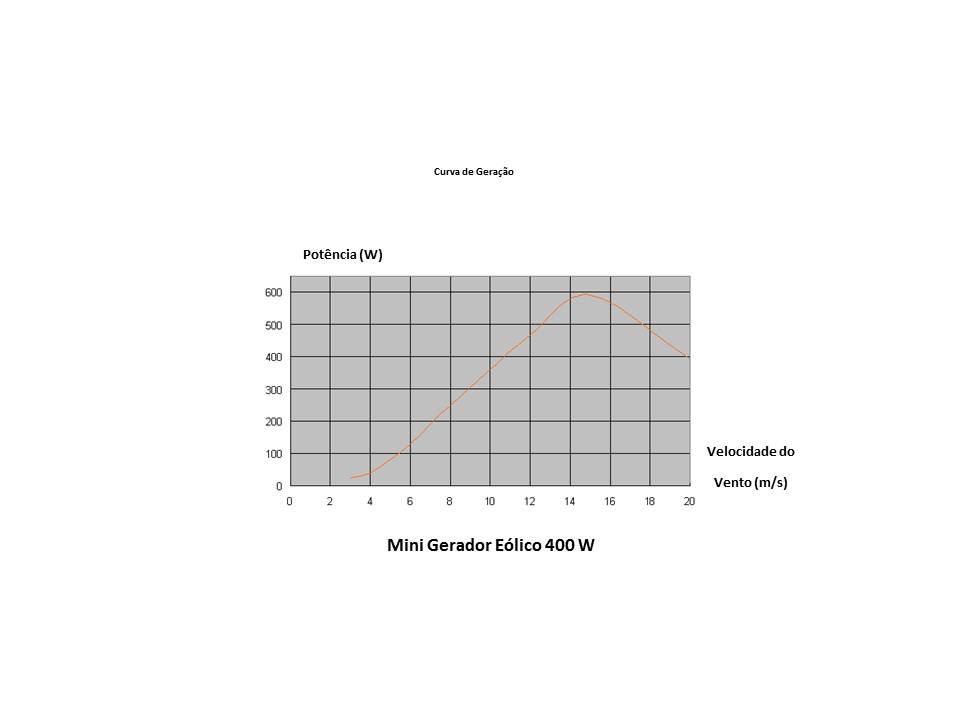

Specifications
|
Rated power (W) |
400 |
|
Maximum output power (W) |
600 |
|
Battery bank voltage (Vdc) |
12 |
|
System output voltage (Vdc) |
12 |
|
Start-up wind speed (m/s) |
2.5 |
|
Rated wind speed (m/s) |
11 |
|
Working wind speed (m/s) |
3-25 |
|
Survival wind speed (m/s) |
50 |
|
Generator efficiency |
>0.8 |
|
Wind energy utilizing ratio (Cp) |
0.4 |
|
Generator type |
Permanent Magnet Alternator |
|
Generator weight (kg) |
5.5 |
|
Blade material/quantity |
GRP/3 |
|
Blade diameter (m) |
Ф1.25 |
|
Speed regulation method |
Yawing+Electromagnetism braking |
|
Shutting down method |
Manual+Automatic |
